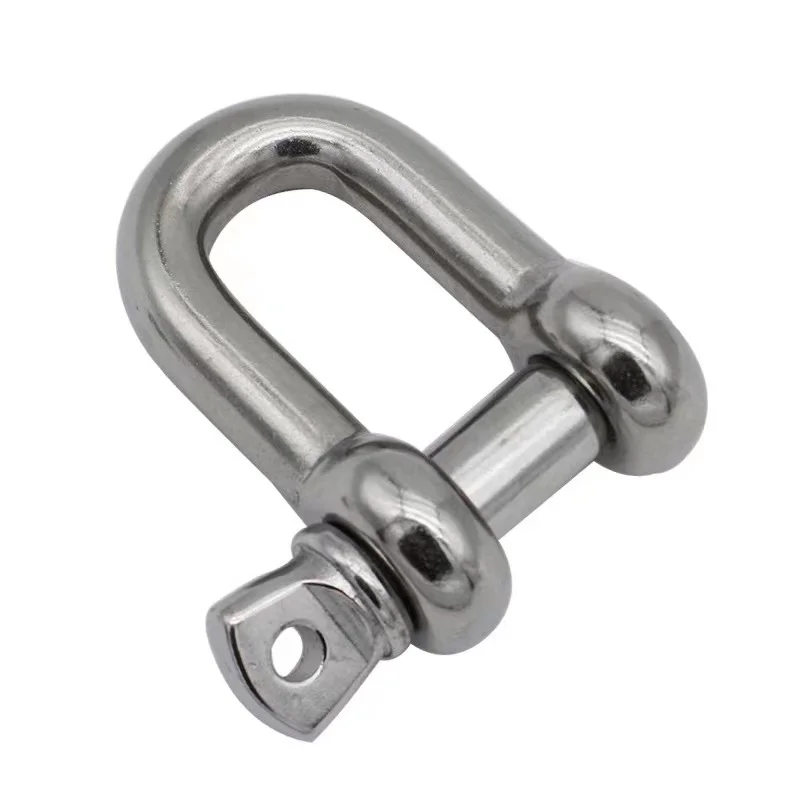

Stainless Steel D Shackle Company: Expert Guide to Selecting Reliable Rigging Hardware

Every lifting operation hinges on components most people never see until something goes wrong. The humble D shackle is one of those parts—small, simple, and absolutely unforgiving when chosen poorly. At Wanluo, we've spent years putting stainless steel shackles through brutal load tests, salt spray chambers, and real-world abuse so you don't have to guess. This guide cuts through the catalog jargon and gives you the straight criteria for selecting rigging hardware that won't let you down. Whether you're rigging a marine crane or securing a critical load, the difference between a reliable shackle and a liability often comes down to a few overlooked details. Stick with us, and you'll never look at a D shackle the same way again.

Which Stainless Grade Actually Holds Up in the Field?

Ask a maintenance crew on a coastal wastewater plant which stainless they trust, and you’ll rarely hear 304 praised. Pitting and crevice corrosion eat through it within a couple of seasons when chlorides hover in the air. Yet the same 304 holds up for decades inside a food processing line where washdown chemicals are mild and temperatures stay below 40°C. The real field answer isn’t a single grade — it’s matching the alloy’s passive layer to the specific insults of the environment.

Take 316L: the extra molybdenum buys you time against salt spray and de-icing brines, but it won’t save you if the design traps standing water. I’ve seen 316 handrails on a beachfront condo develop rust streaks within 18 months because the installers used carbon steel brackets and the crevices under the mounts never drained. Compare that to a duplex 2205 valve body in the same climate — five years in, it still wipes clean with a rag, mainly because the higher chromium and nitrogen content resists chloride stress corrosion cracking that would split a standard austenitic grade.

Cost often drives the choice, but field performance has a way of punishing false economy. Lean duplex grades like 2304 now cost less than 316 in many markets and outperform it in abrasion and chloride resistance. For structural supports in a sulfuric acid pickling line, though, even super duplex fails fast — you need a high-nickel alloy or a polymer lining. The field truth: nobody wins by memorizing a grade chart. You win by walking the site, testing the actual fluid chemistry, and asking what failed there before.

What Do Load Ratings Really Mean for Your Lift?

A lift's load rating is not a single fixed capacity; it describes the maximum safe weight under a specific set of conditions. The rating on the data plate assumes a particular load center—typically 24 inches for many forklifts—meaning the center of gravity of the load sits exactly that far from the mast face. Every inch you shift that center outward, whether through a longer pallet, an irregular load, or an attachment, multiplies the forward tipping moment. That rated number can drop faster than most operators expect.

Because the capacity is tied to the machine's stability triangle and mast geometry, the same lift may have different ratings at different lift heights. A unit that can handle 4,000 lb at ground level might be limited to 2,500 lb when the forks are fully raised, simply because the combined center of gravity moves higher and farther from the rear axle. Attachments like side shifters or paper roll clamps also subtract from net capacity, since their own weight and forward offset consume part of the original rating. Reading the full load chart instead of relying on the big number printed on the hood is the only way to know what the lift can actually do in your operation.

Forged or Cast: How Much Does It Matter?

The real difference between forged and cast parts comes down to internal grain structure. Forging aligns the metal's grain flow with the shape of the part, which often means better fatigue resistance and impact toughness. Casting, on the other hand, fills a mold with molten metal, leaving a more random grain orientation and, sometimes, tiny voids or porosity. If the component will face repeated stress, sharp blows, or heavy cyclic loading, that difference can show up as a longer or shorter service life.

However, casting has its own strengths. Complex shapes, internal cavities, and large one-piece designs are far easier and cheaper to produce as castings. For many applications—think pump housings, engine blocks, or decorative hardware—the loads are well within what a good casting can handle, and the cost savings are substantial. Forging typically requires more machining and higher tooling costs, which only makes sense when the part truly needs the extra mechanical performance.

So how much does it matter? Enough that you should match the process to the job, not assume one is always better. A forged crankshaft in a high-output engine is worth the cost; a cast aluminum bracket on a lawnmower is usually fine. The failure point is rarely the process itself, but using the wrong process for the expected loads and environment.

Which Pin Style Keeps a D Shackle Secure?

Most standard D shackles come with a screw pin, and while it's the easiest to use, it's also the most likely to work loose if there's any vibration or twisting under load. The threads can back out gradually, especially on a hoist line or tow strap that sees repeated tension and slack cycles. If you're going to rely on a screw pin, check it between every lift and consider a drop of medium-strength thread locker or a safety wire to stop it from rotating.

For anything that involves dynamic loads or extended use, a bolt-type pin with a nut and cotter pin is much harder to shake apart. The nut keeps the pin from pulling through, and the cotter pin prevents the nut from backing off, so you get a mechanical lock that doesn't rely on thread friction alone. This setup takes a few extra seconds to assemble, but it's the standard choice for overhead lifting, marine rigging, and any job where a dropped load would be catastrophic.

That said, even the best pin style won't save you if the shackle is overloaded, corroded, or installed at an angle. Always match the pin to the shackle body—mixing parts from different manufacturers can leave you with mismatched threads—and tighten until the pin shoulder seats firmly against the shackle ear. In critical applications, many riggers mark the nut and pin with a paint pen after torquing, so any rotation is immediately visible during inspection.

When Do Surface Flaws Turn Into a Safety Risk?

A scratch on a turbine blade might look harmless during a routine walk-around, but give it a few thousand cycles of vibration and temperature swings, and that same mark can become the starting point for a fatigue crack. The line between cosmetic imperfection and structural threat isn't fixed; it shifts with the material, the load history, and the environment the part lives in.

Operators often rely on dimensional checks or visual pass/fail limits, yet the real answer depends on how the flaw interacts with stress concentration and crack growth rates. A 0.5 mm pit in a low-pressure water pipe may be irrelevant for decades, while the identical pit on a high-pressure gas line near a weld can reduce burst margin below acceptable levels. Temperature, corrosion media, and cyclic loading turn a static defect into a propagating one.

Field experience shows that many failures trace back to flaws dismissed as "within tolerance" during inspections because they didn't account for combined loading or environmental degradation. The threshold isn't a single number; it's a moving target that requires understanding fracture mechanics, not just surface appearance. When the part's function, not its finish, becomes uncertain, that's when a surface flaw turns into a safety risk.

How Do You Match a Shackle to the Job Without Guesswork?

Matching a shackle to the job starts with knowing exactly what you're lifting, pulling, or securing. Forget the one-size-fits-all mindset. Look at the load's weight, the angle of the sling legs, and any shock or dynamic forces that might spike the stress. Once you have those numbers, check the shackle's working load limit and compare it against the worst-case scenario, not the average. A shackle that's barely adequate on paper is a failure waiting to happen in the field.

Next, think about the type of connection. A screw pin shackle works fine for permanent or semi-permanent setups where rotation isn't a concern, but if the load twists or the sling can move, a bolt-type shackle with a nut and cotter pin gives you far more security. Also pay attention to the shackle's body and pin diameter relative to the sling eye or lifting point. Too tight a fit creates point loading and premature wear; too loose lets the shackle shift and bind. The goal is a snug, centered alignment that keeps the load path straight through the shackle's crown.

Finally, never skip the visual check. Look for cracks, corrosion, bent pins, or worn threads before every use. A shackle that's been overloaded may not show obvious damage, so track its history and retire anything that's been shock-loaded or shows signs of stretching. If you're working in a harsh environment—saltwater, chemicals, extreme cold—factor that into your selection and replacement cycle. Guessing gets expensive in rigging. Know your numbers, know your conditions, and pick the shackle that leaves zero doubt.

FAQ

Conclusion

Choosing a stainless steel D shackle that survives real working conditions starts with knowing the alloy. Grade 316 holds up far better around saltwater, chemical washdowns, and constant moisture than 304, which can still pit and weaken over time. But the material decision doesn't end there. Load ratings are not just a number stamped on the side; they describe the maximum working load limit under straight-line pulls. Any side loading, shock, or angular lift cuts that capacity quickly. A forged shackle body, rather than a cast one, gives you a tighter grain structure and fewer internal voids, which means it bends rather than snaps under overload. That extra toughness matters when a lift goes wrong.

The pin style is equally important. A screw pin works for temporary rigging that gets assembled and torn down often, while a bolt-type pin with a nut and cotter offers more security for long-term or vibration-prone setups. Look closely at the surface. Light scratches are normal, but deep nicks, cracks, or corrosion pitting near the crown or pin holes are red flags—they concentrate stress and can turn a routine lift into a failure. To match a shackle to the job, check the actual sling or rope diameter, the angle of the load, and any dynamic forces. When in doubt, go up a size and use a shackle rated well beyond the expected load. That simple habit removes guesswork and keeps the hardware reliable.
