ER309 Stainless Steel: The Choice for High-Performance Welding

In the realm of stainless steel, ER309 stands out as a versatile and high-performance alloy that excels in various welding applications. Known for its unique composition and properties, ER309 stainless steel is widely used in industries ranging from construction and automotive to aerospace and manufacturing. In this blog, we’ll explore what ER309 stainless steel is, its key characteristics, applications, and the benefits it offers in welding processes.

What is ER309 Stainless Steel?

ER309 is a type of stainless steel specifically formulated for welding applications. It is a welding rod or filler material commonly used in gas tungsten arc welding (GTAW) and gas metal arc welding (GMAW). The designation ER309 refers to the alloy's composition and its suitability for welding.

Key Features:

- Composition: ER309 stainless steel is primarily composed of chromium (22-24%) and nickel (12-15%), with a small amount of manganese, silicon, and carbon. This composition gives it unique properties that make it suitable for specific applications.

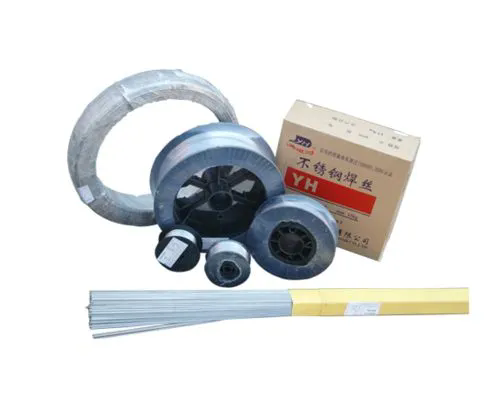

- Form: It is available in various forms, including wires and rods, tailored for different welding techniques.

Properties of ER309 Stainless Steel

1. Corrosion Resistance:

  - Description: ER309 offers excellent resistance to oxidation and corrosion, particularly in high-temperature environments.

  - Benefits: It ensures the longevity and durability of welded joints, even in aggressive or corrosive conditions.

2. High Temperature Strength:

  - Description: The alloy maintains its strength and structural integrity at elevated temperatures.

  - Benefits: It is suitable for applications where the welded components will be exposed to high temperatures.

3. Good Ductility:

  - Description: ER309 exhibits good ductility, allowing it to be deformed without cracking.

  - Benefits: It provides flexibility during the welding process and can accommodate thermal expansion and contraction.

4. High-Strength Welds:

  - Description: The alloy produces strong and durable welds that can withstand mechanical stresses.

  - Benefits: Ensures that welded joints have the necessary strength for demanding applications.

5. Compatibility:

  - Description: ER309 is compatible with a range of base metals, including mild steel and stainless steel.

  - Benefits: Versatility in welding different materials and alloys.

Applications of ER309 Stainless Steel

1. Welding Dissimilar Metals:

  - Description: ER309 is often used for welding dissimilar metals, such as carbon steel to stainless steel or different grades of stainless steel.

  - Benefits: Provides a strong and reliable weld that can handle the differences in thermal expansion and contraction between different metals.

2. High-Temperature Applications:

  - Description: The alloy is used in applications where components are exposed to high temperatures, such as in furnace components, heat exchangers, and exhaust systems.

  - Benefits: Ensures the durability and performance of components in high-temperature environments.

3. Chemical Processing:

  - Description: ER309 is used in the chemical processing industry for welding equipment and components exposed to corrosive substances.

  - Benefits: Offers resistance to corrosion and chemical attack, enhancing the longevity of equipment.

4. Automotive Industry:

  - Description: Used for welding various automotive parts, including exhaust systems and chassis components.

  - Benefits: Provides strong, durable welds that can withstand the harsh conditions of automotive applications.

5. Construction and Fabrication:

  - Description: ER309 is used in the construction and fabrication of structures that require robust and corrosion-resistant welds.

  - Benefits: Ensures structural integrity and longevity in construction projects.

6. Aerospace:

  - Description: Employed in the aerospace industry for welding components that need to endure high stresses and temperatures.

  - Benefits: Ensures the reliability and performance of aerospace components.

Advantages of ER309 Stainless Steel

1. Versatility:

  - Description: ER309’s compatibility with different base metals and alloys makes it a versatile choice for various welding applications.

  - Benefits: Reduces the need for multiple filler materials and simplifies the welding process.

2. Enhanced Durability:

  - Description: The alloy’s high-temperature strength and corrosion resistance enhance the durability of welded joints.

  - Benefits: Provides long-lasting performance in demanding environments.

3. Cost-Effectiveness:

  - Description: While ER309 may be more expensive than some other filler materials, its performance and durability can lead to cost savings in the long run.

  - Benefits: Reduces the need for repairs or replacements due to weld failure.

4. Improved Weld Quality:

  - Description: Produces high-quality welds with excellent strength and appearance.

  - Benefits: Enhances the overall quality of the final product and reduces the likelihood of defects.

5. Ease of Use:

  - Description: ER309 is designed to be easy to work with, offering good arc stability and minimal spatter.

  - Benefits: Simplifies the welding process and improves operator efficiency.

Conclusion

ER309 stainless steel represents a critical component in the welding industry, offering exceptional performance in a range of high-demand applications. Its unique composition provides excellent corrosion resistance, high-temperature strength, and versatility in welding different metals. Whether used in the automotive, aerospace, construction, or chemical processing industries, ER309 stainless steel ensures durable, high-quality welds that stand up to the rigors of demanding environments. By understanding and leveraging the advantages of ER309, welders and manufacturers can achieve superior results and enhance the longevity and performance of their welded products.
