In industries that require high-temperature processing of metals, the double ring graphite crucible has become an essential tool due to its superior thermal and chemical properties. Whether used in metal casting, smelting, or other high-heat applications, these crucibles offer a level of durability and efficiency unmatched by other materials. In this blog, we’ll dive into what makes double ring graphite crucibles unique, explore their advantages, and highlight their significance in various industries.
What is a Double Ring Graphite Crucible?

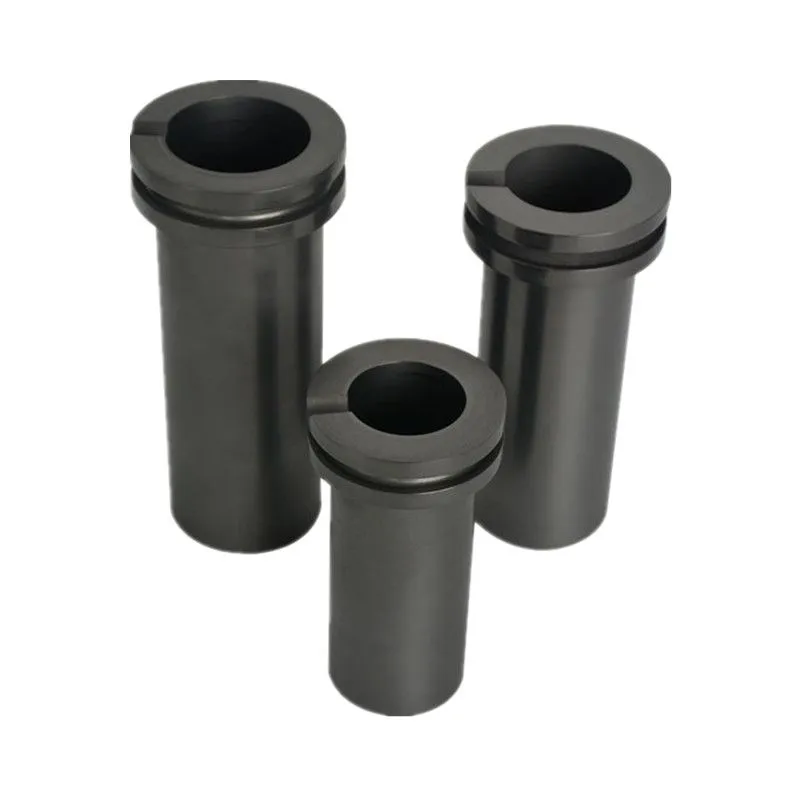

A graphite crucible is a container used in high-temperature processes, especially for melting and holding metals. Made primarily from natural graphite, these crucibles are known for their ability to withstand extremely high temperatures without breaking down or contaminating the materials inside. The "double ring" refers to a specific design where two concentric rings are integrated into the crucible, enhancing its structural strength and heat retention properties.
Double ring graphite crucibles are particularly valued in industries that work with molten metals such as aluminum, copper, and gold, as well as in chemical laboratories and manufacturing plants that require heat-resistant containers.
Advantages of Double Ring Graphite Crucibles
1. High Thermal Conductivity
Graphite is a material with excellent thermal conductivity, which allows it to distribute heat evenly throughout the crucible. This is crucial in applications like metal smelting or refining, where consistent heat distribution ensures uniform melting and reduces the risk of cold spots or incomplete processing.
The double ring design enhances this thermal efficiency, as the rings provide additional surface area to conduct and retain heat. This leads to more efficient energy use and faster heating times, making double ring graphite crucibles highly energy-efficient.
2. Superior Temperature Resistance
Graphite crucibles can withstand extremely high temperatures, typically up to 3000°C (5400°F) or higher, depending on the specific composition. This makes them ideal for applications where metals need to be melted or processed at extreme temperatures. Unlike ceramic or metal crucibles, which can degrade or react with molten materials, graphite remains stable even under intense heat, ensuring that it won’t contaminate the contents.
3. Resistance to Chemical Erosion
One of the key benefits of graphite crucibles is their resistance to chemical reactions with the molten materials they hold. Many metals, when melted, can react with other substances, causing contamination or unwanted alloy formation. However, graphite is chemically inert in most scenarios, which prevents these reactions and keeps the melted materials pure.
The double ring feature also adds an extra layer of resistance to erosion, ensuring that the crucible lasts longer even in harsh chemical environments.
4. Longer Lifespan
Thanks to its structural strength and resistance to thermal shock, a double ring graphite crucible has a significantly longer lifespan compared to other types of crucibles. The double ring design not only reinforces the walls of the crucible but also helps distribute stress more evenly, preventing cracking and wear over time. This durability reduces the need for frequent replacements, making it a cost-effective choice for industries with continuous high-temperature operations.
5. Cost-Effective Operation
While graphite crucibles might have a higher upfront cost than some alternatives, their durability, efficiency, and extended lifespan make them a more cost-effective option in the long run. The reduced energy consumption due to excellent heat retention and faster heating cycles contributes to overall operational savings. Plus, the decreased likelihood of contamination saves time and resources in post-processing.
6. Flexibility in Size and Application
Double ring graphite crucibles come in a variety of sizes, making them suitable for small laboratory experiments as well as large industrial smelting operations. Their adaptability means they can be used in a wide range of applications, from precious metal processing in jewelry manufacturing to large-scale metal casting in foundries.
Applications of Double Ring Graphite Crucibles
1. Metal Casting and Smelting
One of the most common uses for double ring graphite crucibles is in metal casting and smelting. Their ability to withstand high temperatures and resist chemical reactions makes them ideal for melting metals like aluminum, copper, gold, silver, and iron. Whether it's for refining raw materials or casting metal parts, these crucibles are indispensable in foundries and metalworking industries.
2. Jewelry Manufacturing
In the jewelry industry, precision is crucial when working with precious metals like gold, silver, and platinum. Double ring graphite crucibles provide jewelers with the necessary temperature control and purity during the melting process, ensuring that metals are melted uniformly and without contamination. Their durability also means they can be reused many times, which is vital for small-scale operations.
3. Laboratories and Research
Chemical and metallurgical laboratories frequently use double ring graphite crucibles in experiments and processes that require controlled high temperatures. Their chemical inertness ensures that reactions are not compromised, while their heat resistance makes them ideal for testing metal properties or developing new alloys.
4. Semiconductor and Electronics Industry
The semiconductor industry relies heavily on materials that can handle high-temperature processes. Double ring graphite crucibles are used in the production of semiconductors, particularly in the growth of single crystal silicon, where precise temperature control is essential. Graphite’s thermal conductivity and stability make it a preferred material in these highly sensitive applications.
5. Glass Manufacturing
Double ring graphite crucibles are also used in the glass manufacturing industry, where high-temperature furnaces melt glass ingredients. The stability and heat resistance of graphite make it an ideal material for holding the molten glass without contamination or deformation.
Maintenance and Care Tips for Double Ring Graphite Crucibles
To ensure the longevity and performance of double ring graphite crucibles, proper maintenance is essential:
- Preheat Before Use: It’s important to gradually preheat the crucible before exposing it to full temperature. This helps reduce the risk of thermal shock, which could cause cracking.
- Avoid Rapid Cooling: After use, allow the crucible to cool down gradually. Avoid exposing it to rapid cooling methods like water, as this can cause thermal stress.
- Regular Inspection: Frequently check for cracks, wear, or erosion in the crucible walls. Early detection of damage can help prevent failure during operation.
- Store Properly: When not in use, store crucibles in a dry, cool place. Moisture can degrade the crucible over time and cause thermal shock during use.
Conclusion
The double ring graphite crucible is a versatile, reliable tool that plays a critical role in high-temperature processes across various industries. From metal smelting and jewelry making to semiconductor production and laboratory research, these crucibles offer unmatched temperature resistance, chemical stability, and durability. Their double ring design further enhances their strength and heat retention properties, making them a cost-effective, long-lasting solution for industries that demand precision and reliability in high-temperature environments.
By investing in high-quality double ring graphite crucibles, businesses can ensure efficient, safe, and cost-effective operations while maintaining the integrity of their processes and products.
